Product details
Specifications
Hardware
· Ports: 2 LAN/WAN Gigabit Ethernet Ports, 1 USB Type-C Port
· Buttons: 1 Reset button on the underside
· Antenna Type: 4 internal antennas per Deco unit
· Wireless Onboarding: Bluetooth 4.2
· Flash: 32 MB
· SDRAM: 256 MB
· External Power Supply: 12 V/1.2 A
· Dimensions (Dia x H): 4.7 in. x 1.3 in. (120 mm x 38 mm)
Wireless
· Wireless Standards: IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
· Frequency: 2.4 GHz and 5 GHz
· Signal Rate: 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz
· Transmit Power: FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
· Wireless Security: WPA-PSK/WPA2-PSK
Specifications
Software
· Working Mode: Router, Access Point
· WAN Type: Dynamic IP/Static IP/PPPoE
· DHCP: Server, Client
· Quality of Service: WMM
· Firewall Security: SPI Firewall
· Protocols: Supports IPv4 and IPv6
· Guest Network: 2.4 GHz guest network x 1, 5 GHz guest
network x 1
· Features: Parental Controls, 3-Year Built-In Antivirus, QoS
(Quality of Service), Reporting, Assisted Setup, Address Reservation, Port Forwarding, TP-Link DDNS
· Management: Local Management, Remote Management
Others
· Certification: CE, FCC, IC, NCC, BSMI, IDA,
RCM, JPA, JRF, VCCI, KC, RoHS
· Smartphone/Tablet Requirements:
iOS 8.0 or later
Android 4.3 or later
Bluetooth 4.0 or later
· Environment:
Operating Temperature: 0℃ ~40℃ (32℉ ~104℉ )
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉ )
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
· Package Contents for Whole-Home Wi-Fi System (3-pack):
3 Deco units
1 RJ45 Ethernet Cable
3 Power Adapters
· Package Contents for Whole-Home Wi-Fi Unit (1-pack):
Installed independently or added to the existing system to provide greater coverage
1 Deco unit
1 RJ45 Ethernet Cable
1 Power Adapter

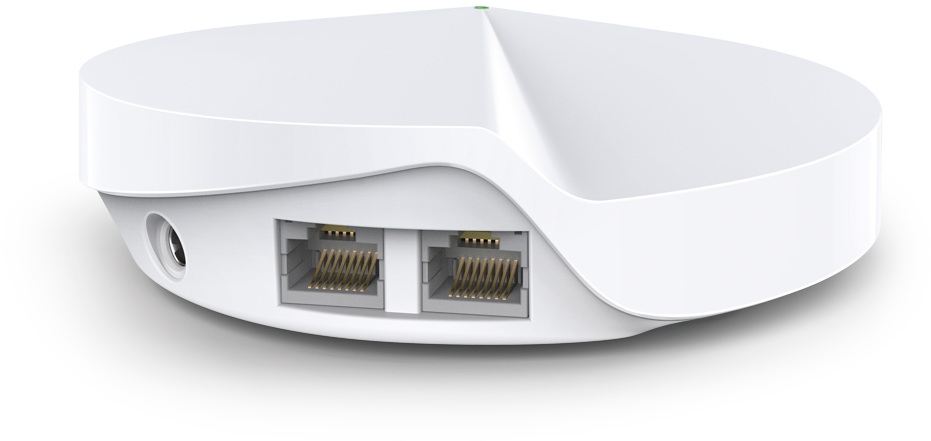

Reset
Power Ethernet

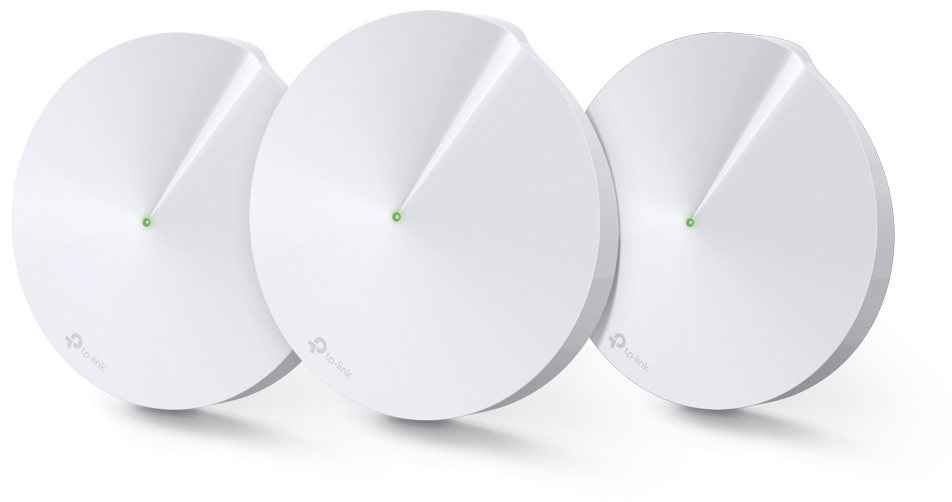

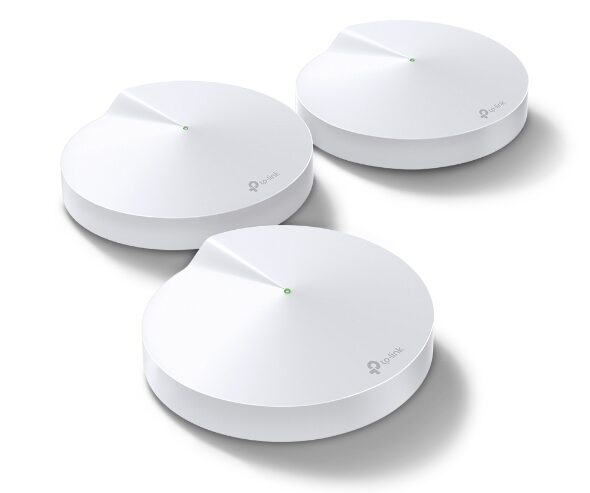

TP-Link AC1300 Whole-Home Wi-Fi System Deco M5
