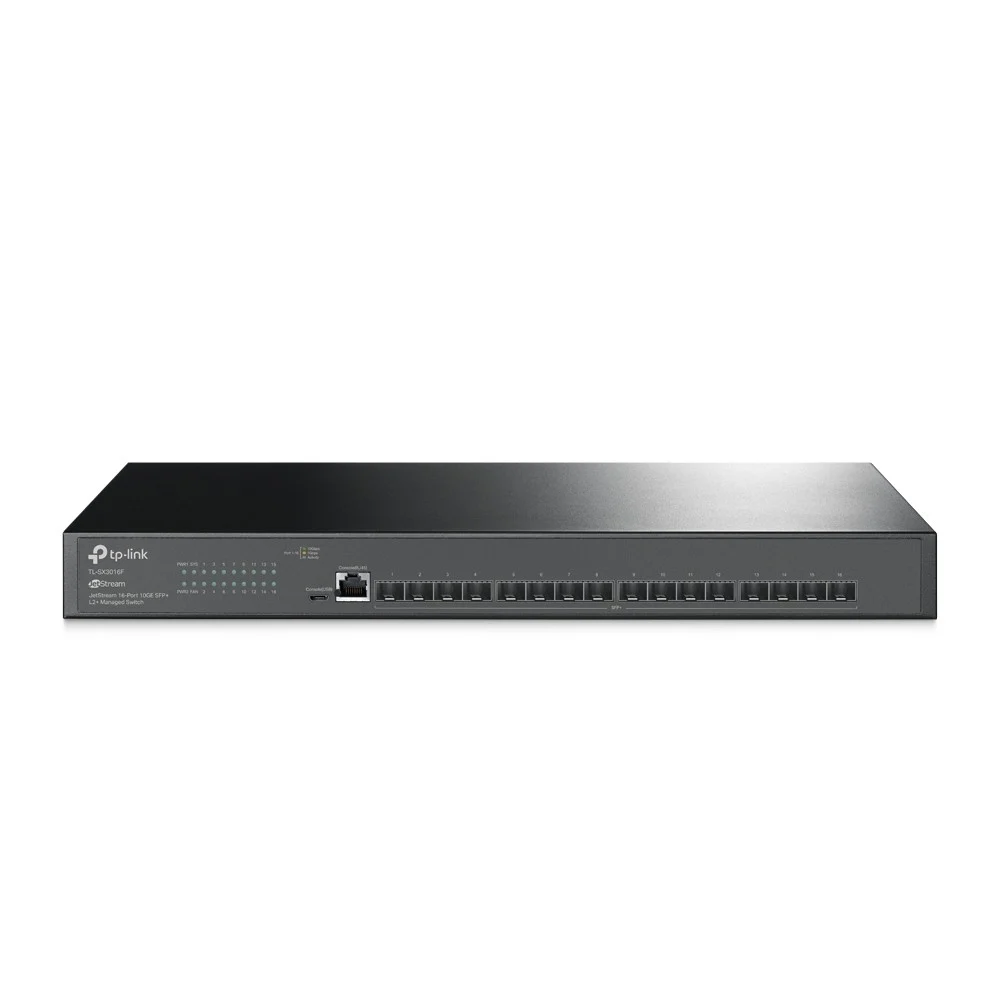

TL-SX3016F
Switch administrable JetStream 16 ports 10GE SFP+ L2+
- 16 emplacements SFP+ 10 GE complets : les emplacements SFP+ 10 Gbit/s ultra-rapides offrent une connectivité d’agrégation à large bande passante et une capacité de commutation non bloquante de 320 Gbit/s.
- Fonctionnalités L2 et L2+ abondantes : prise en charge une gamme complète de fonctionnalités L2 et L2+, notamment le routage statique, la qualité de service au niveau de l’entreprise, la surveillance IGMP, etc.
- Stratégies de sécurité robustes : aide à protéger l’investissement dans la zone LAN grâce à la liaison IP-MAC-Port intégrée, à l’ACL, à la sécurité des ports, à l’authentification 802.1X, etc.

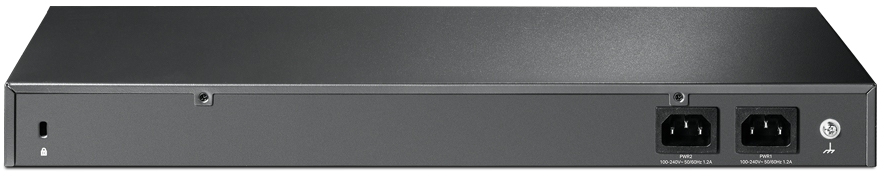

- Alimentations doubles redondantes : deux alimentations se protégeant l’une l’autre en font un choix idéal pour une architecture réseau fiable.
- Gestion Cloud centralisée : s’intègre à Omada SDN pour l’accès au cloud et la gestion à distance.
- Gestion autonome : Web, CLI (port de console, Telnet, SSH), SNMP, RMON et double image apportent de puissantes capacités de gestion.
| CARACTERISTIQUES MATERIELLES | |
|---|---|

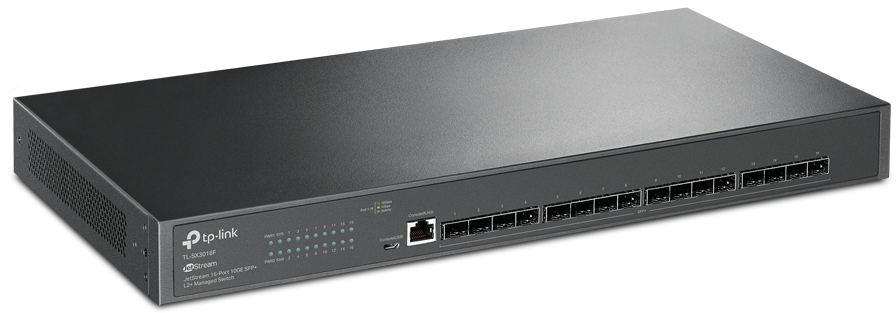

| Interface | • 16× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Nombre de ventilateurs | 1 |
| Alimentation | 100-240 V AC~50/60 Hz |
| Dimensions (LxPxH) | 440 × 220 × 44 mm |
| Montage | Rack Mountable |
| Consommation maximale | 32.74 W (220 V / 50 Hz) |
| Max dissipation thermique | 111.71 BTU/hr (220 V / 50 Hz) |
| Performances | |
|---|---|
| Capacité de commutation | 320 Gbps |
| Taux de transfert de paquets | 238.08 Mpps |
| Tableau d’adresses MAC | 32 K |
| Mémoire tampon des paquets | 24 Mbit |
| Trame Géante | 9 KB |
| CARACTERISTIQUES LOGICIELLES | |
|---|---|
| Qualité de Service QoS | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| Fonctions N3 | • 16 IPv4/IPv6 Interfaces • Static Routing – 48 static routes • Static ARP – 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay • DHCP L2 Relay |
| Fonctions N2 et N2+ | • Link Aggregation – static link aggregation – 802.3ad LACP – Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection – Port based – VLAN based • Flow Control – 802.3x Flow Control – HOL Blocking Prevention • Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both |
| Multidiffusion N2 | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication • IGMP Authentication • MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile |
| Caractéristiques avancées | • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)* |
| VLAN | • VLAN Group – Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ • Voice VLAN |
| Liste de contrôle d’accès | • Time-based ACL • MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type • IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy – Mirroring – Redirect – Rate Limit – QoS Remark • ACL apply to Port/VLAN |
| Sécurité | • IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| Administration | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| Administration | |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Administration Centralisée | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Accès Cloud | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Fonctions d’administration | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| Autres | |
|---|---|
| Certification | CE, FCC, RoHS |
| Contenu de l’emballage | • TL-SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Système requis | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environnement | • Operating Temperature: 0–45 ℃ • Storage Temperature: -40–70 ℃ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
* Le provisionnement sans contact nécessite l’utilisation d’Omada Cloud-Based Controller. Veuillez vous rendre sur www.tp-link.com/omada-cloud-based-controller/product-list pour confirmer quels modèles sont compatibles avec Omada Cloud-Based Controller.
**Les fonctionnalités L3 et ISP ne peuvent être configurées qu’en mode autonome.
